Instrument technical parameters

? ambient temperature

? operating temperature: - 40 ℃ ~ 75 ℃ (except TFT screen)

? LCD temperature: - 30 ℃ ~ 75 ℃

? storage temperature: - 40 ℃ ~ 90 ℃ (- 40 ℃ for 48 hours, 85 ℃ for 48 hours, 90 ℃ for 1 hour)

? voltage

? normal working voltage: 9V ~ 16V (when the voltage is outside this range, it will not be taken as a concern)

? network communication voltage: 6.5V ~ 18V

? test voltage: 13.5V

? nominal voltage: 12V

? can network working voltage: 6.5V ~ 18V

? ground wire drift: at the non analog input terminal, the ground wire drift is less than 0.5V

? minimum effective voltage of high level signal: 9V

? maximum effective voltage of low level signal: 1V

? power off hold time (EEPROM stored data): 4S

? quiescent current

? dark current: < 1mA (test voltage 13.5V, ambient temperature 25 ℃± 5 ℃)

? sleep wake up

? only can network and ign on can wake up the instrument. When these two wake-up conditions do not exist, the instrument will remain in sleep state (power saving mode)

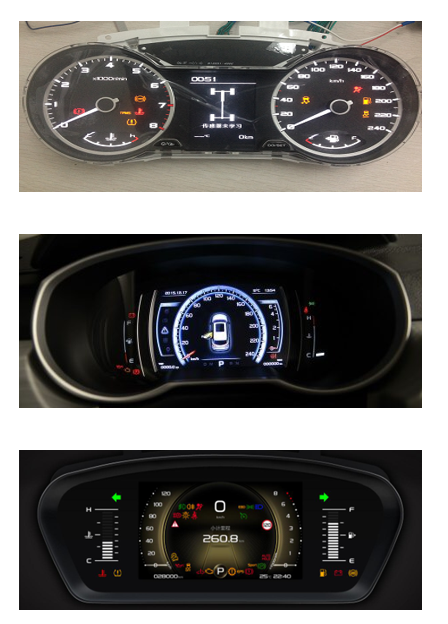

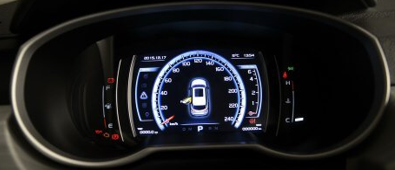

Main functions of instrument

? indicator

? speedometer, tachometer, electricity meter, fuel meter, water temperature meter

? alarm indicator

? left and right turn signals, lights, ABS / EBD, water temperature, fuel quantity, batteries, etc

? LCD display area

? time and date

? temperature

? mileage

? gear

? trip computer

? alarm messages

? menu information

? audible alarm

? multilingual
